A clean fan pattern is one of the fastest ways to judge whether a painter is in control of the job. In professional refinishing, the gun pattern must be balanced before the first pass on the vehicle. I never start on a hood, door, bumper, or quarter panel until the spray-out card shows a smooth cigar-shaped pattern with even material distribution. A poor pattern may still put paint on the panel, but it will also create striping, patchy coverage, excess edge build, and unnecessary sanding or polishing later.

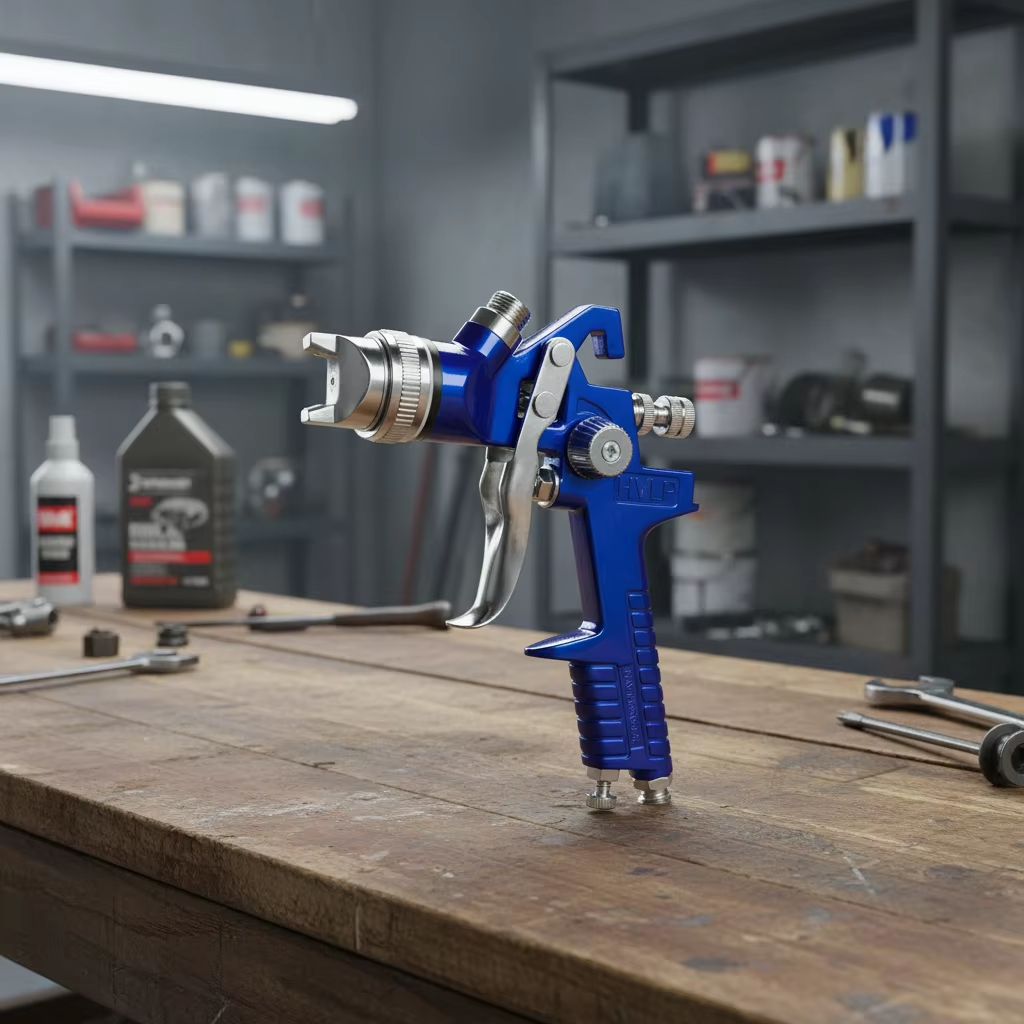

When setting up the lvlp spray gun Professional Automotive Tools process for pattern control, begin with the air cap clean and the needle moving freely. Dried clear around the fluid tip can distort one side of the fan. A slightly bent needle can cause uneven delivery. Even a small piece of debris in an air horn can pull the spray to one side. These details matter because refinish coatings are thin, reflective, and unforgiving under booth lights.
Open the fan control gradually instead of turning it fully open by habit. A maximum fan is not always the best fan. On large panels such as hoods and doors, a wide fan helps maintain coverage speed. On bumper covers, rocker panels, pillars, and repaired edges, a slightly narrower fan gives better control and reduces dry overspray. Pull the trigger fully during adjustment, then spray a short burst on masking paper. The pattern should be wet in the center but not overloaded, with soft edges and no heavy tails.
Fluid delivery must match the painter’s hand speed. If the fluid is too open, the pass becomes heavy, wet, and slow to flash. If the fluid is too restricted, the painter compensates by moving too slowly, which can create texture and uneven solvent release. A professional uses the pattern test to balance fluid and movement before committing to the panel.
Pressure is another key point. The air spray gun should be adjusted at the handle with the trigger pulled, not guessed from the wall gauge. Too little pressure can create coarse droplets and poor atomization. Too much pressure can dry the material before it lands, increase overspray, and reduce transfer efficiency. The correct setting is the lowest stable pressure that gives a clean, even pattern for the coating being sprayed.
On basecoat, overlap discipline is critical. Use consistent 50% overlap on open panels, keep the wrist locked, and move the full arm across the surface. Do not arc at the end of the pass. Arcing changes distance and loads the panel edge. For metallic colors, keep the pattern uniform and avoid changing speed between repair area and blend area.
For clearcoat, fan pattern control affects clearcoat film build. Watch the wet edge under booth light. The pattern should lay down smoothly without dry bands between passes. If the fan is uneven, the clear will show texture differences after curing. After spraying, clean the cap holes, fluid tip, and needle seat. Pattern problems often start as cleaning problems, and professional painters prevent them before they become comebacks.
