Clearcoat Film Build Control with an Industrial LVLP Spray Gun

Clearcoat is where the job becomes visible to the customer. Bodywork may be straight and basecoat may be accurate, but if the clear is too dry, too heavy, or uneven, the repair will not look professional. As a refinish painter, I focus on controlled film build, stable wet edge, correct flash, and clean gun technique. A good clear finish is not luck; it is a repeatable process.

Before mixing, confirm the panel temperature, booth temperature, and hardener speed. A fast hardener in a warm booth can tighten the clear too quickly and leave texture. A slow hardener in a cold booth can stay open too long and increase sag risk. Mix by the technical ratio, strain the material, and avoid shaking air into the cup. Let the mixed clear settle briefly while you complete final tack-off.

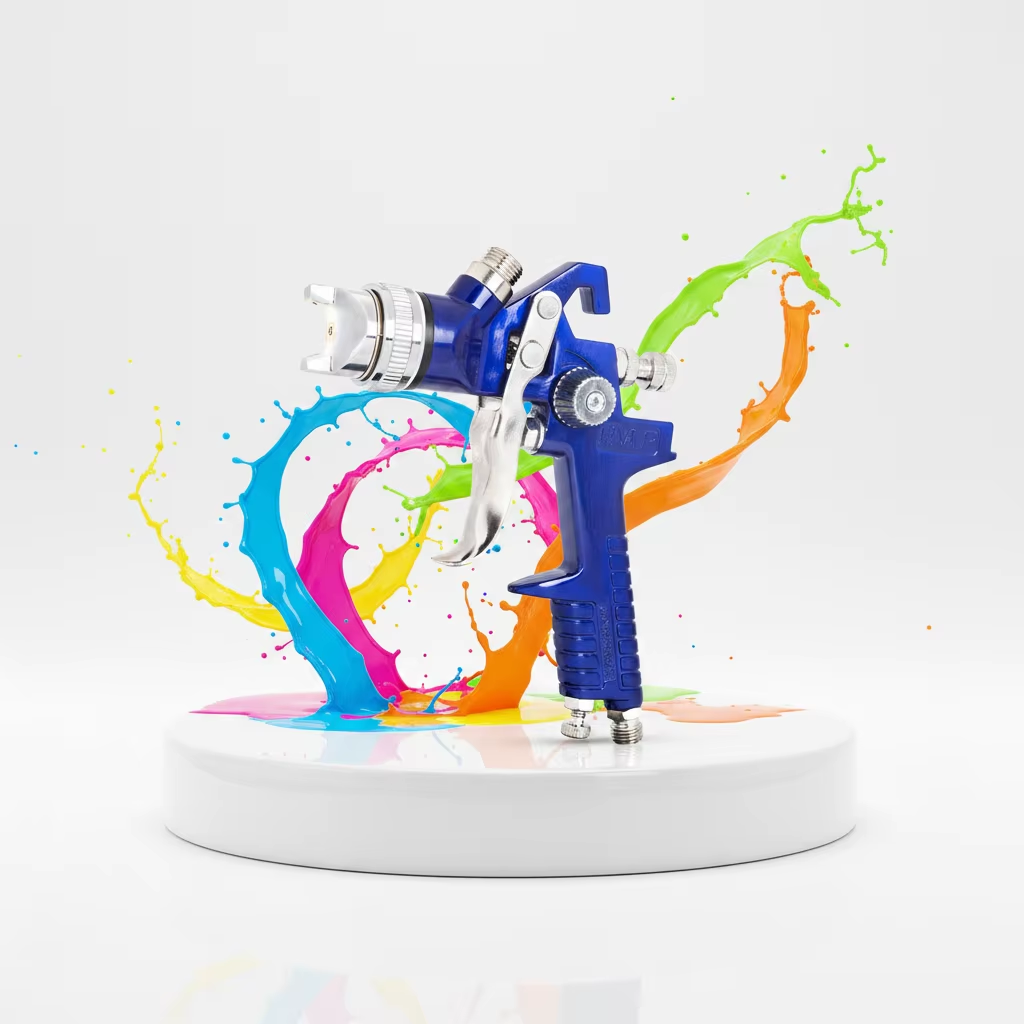

For clear application, I set the lvlp spray gun Professional Automotive Tools workflow around wetness control rather than maximum output. The goal is to apply enough material for gloss and UV protection without burying edges, flooding body lines, or creating solvent trap. Start with a spray-out test and check whether the droplets close smoothly. The pattern should be even, the fan should be stable, and the trigger should feel predictable.

The first coat should be medium-wet and controlled. It must give coverage and adhesion for the second coat but should not be so heavy that it sags around handles, wheel arches, bumper curves, or lower door edges. Keep the gun square to the surface and maintain a consistent distance. If the panel curves, adjust your body position instead of bending your wrist. Wrist bending changes the angle and creates uneven film thickness.

The second coat is usually where gloss and depth develop. Watch the reflection line as you move. A professional painter reads the surface while spraying: dry texture means the pass is too fast or too far away; excessive wave means too much material or slow movement; edge swelling means the overlap is loading too heavily. The air spray gun must be kept moving before the trigger is pulled and after the trigger is released to prevent heavy spots at pass ends.

Overlap should remain consistent, but panel shape matters. On broad panels, use smooth parallel passes. On bumper covers and curved fenders, shorten the stroke and follow the contour. Do not chase a dry corner by blasting more clear into it. Instead, adjust angle, distance, and pass direction. Heavy correction during spraying often causes more defects than the original dry area.

Flash time is part of film build control. If the first coat is still stringy or too wet, the second coat can trap solvent and reduce gloss holdout. If the first coat flashes too long, the second coat may not flow as smoothly. Follow the coating system, but also read the surface.

After spraying, clean the gun immediately. Remove the cup, flush the passage, clean the fluid tip, wipe the needle, and inspect the air cap holes. Clearcoat residue hardens fast and changes the next job’s atomization. In a professional shop, clearcoat quality is built from setup, movement, timing, and maintenance—not from polishing mistakes out later.
