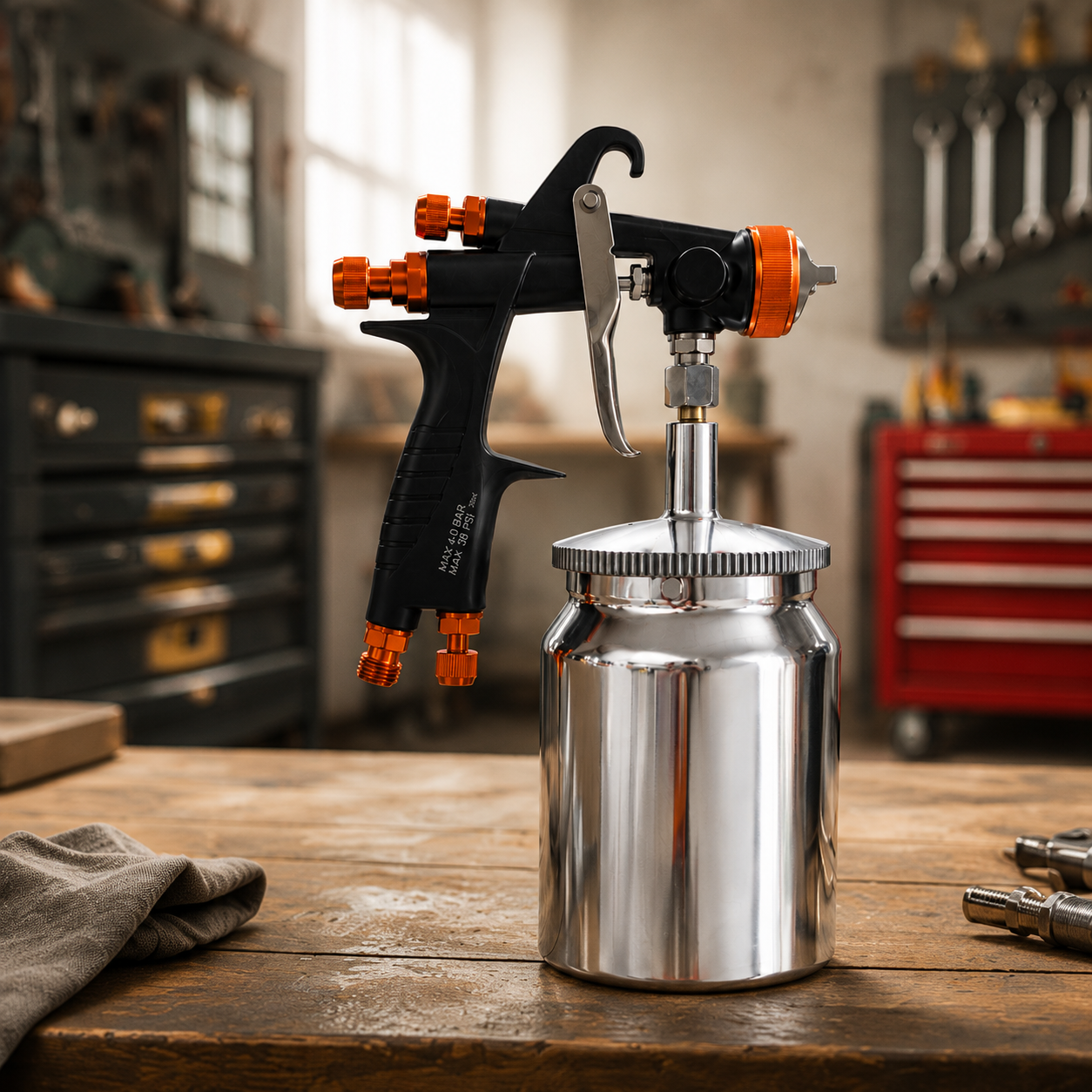

In a collision repair booth, finish quality starts before paint reaches the panel. As a professional painter, I treat the lvlp spray gun Professional Automotive Tools setup as a complete system: compressor delivery, filtration, hose diameter, regulator accuracy, nozzle condition, material viscosity, booth airflow, and painter movement all work together. If one point is unstable, the finish will show it through dry spray, mottling, orange peel, edge loading, or poor clearcoat flow.
Start with the panel. After repair and primer surfacer work, block the surface straight, finish sand according to the coating system, blow out seams, and wipe with the correct cleaner. Do not flood solvent into body lines or panel gaps. Use one wet wipe and one dry wipe so contamination is removed instead of moved around. Tack the panel lightly before spraying, especially around edges, jamb returns, mirror pockets, and recessed stamping lines.
Next, check the air supply. Before spraying, verify the air spray gun has a clean inlet filter, dry compressed air, and a stable regulator reading at the gun handle. Do not rely only on wall pressure. Long hoses, quick couplers, undersized fittings, and dirty filters can drop pressure when the trigger is fully pulled. Always set pressure with the trigger open because static pressure does not represent spraying pressure.
Prepare the coating material according to the paint manufacturer’s ratio. Mix by weight or calibrated cup, strain into the cup, and record the reducer speed for booth temperature. For basecoat, I prefer a controlled medium-wet pass rather than forcing coverage. For clearcoat, I look for smooth wet edge development without pushing excessive film into vertical areas.
Run a spray-out card before touching the vehicle. Open the fan to the usable width, then adjust fluid until the pattern is even from top to bottom. If the center is heavy, reduce fluid slightly or improve atomization. If the pattern is split, the fan may be over-opened or air pressure may be too high. This is where fan pattern control becomes the difference between a production finish and a rework job.
On the panel, keep the gun square, usually 6–8 inches from the surface depending on material response and gun design. Move before pulling the trigger, release after passing the edge, and maintain consistent speed. Use a controlled 50% overlap for most broad areas. On narrow rails, bumper corners, and body lines, reduce pass length and watch film build at the edges.
For metallic basecoat, do not chase shine. Maintain orientation with steady distance and even overlap. Use a drop coat only when the color system requires it. For clearcoat, watch the reflection line: it should close evenly behind the pass without sagging. After the job, clean the cup, fluid tip, needle, and air cap immediately. A professional finish is not created by spraying harder; it is created by setting the gun correctly and repeating the same movement every pass.
