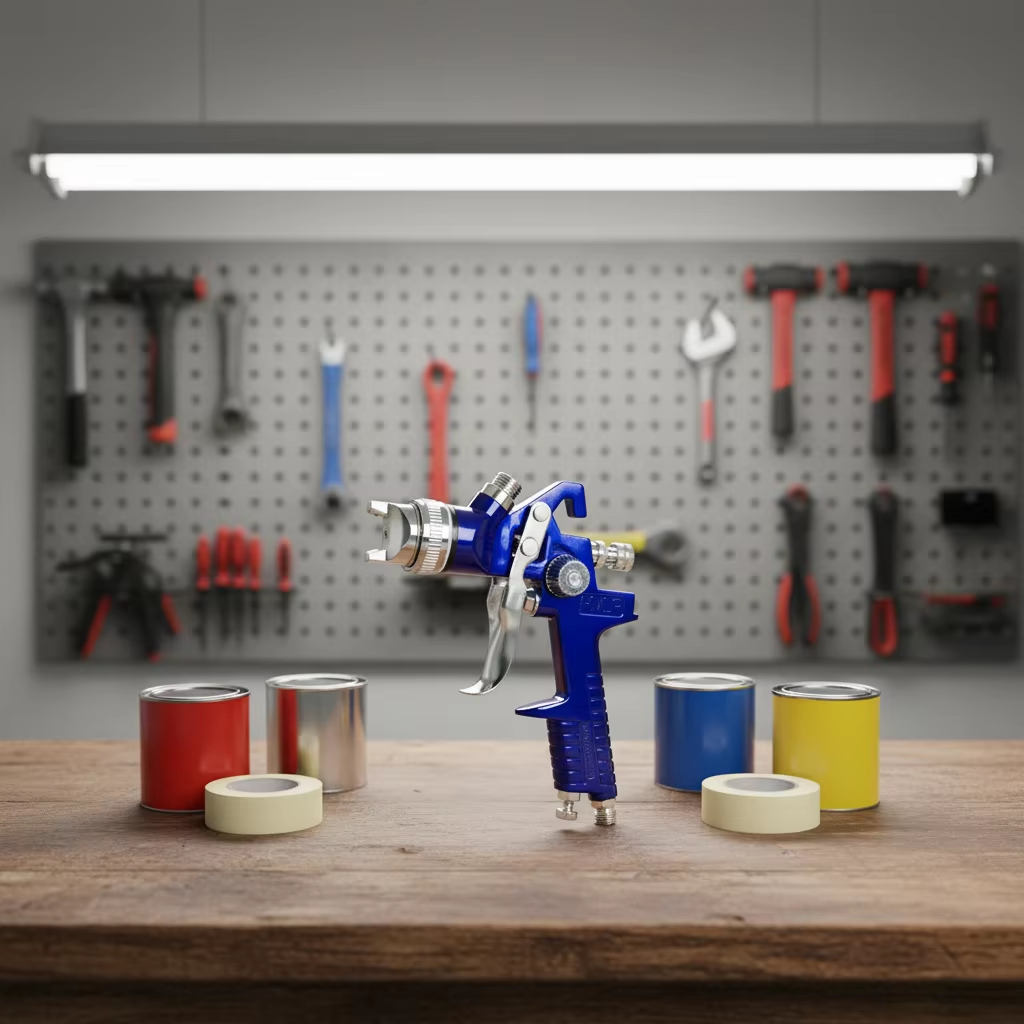

Adjustable LVLP Spray Gun Setup for Car Body Refinishing

In professional car body refinishing, an adjustable LVLP spray gun is not just a paint delivery tool; it is a control instrument. When I set up a gun before spraying a repaired door, hood, bumper cover, or quarter panel, I look at the complete system: compressor output, moisture filtration, hose diameter, regulator stability, nozzle size, coating viscosity, booth temperature, and panel geometry. If one part of that system is wrong, the surface will show it through dry spray, mottling, orange peel, poor metallic control, or weak clearcoat flow.

Before any material goes into the cup, the panel must be ready. I blow out seams, sand edges clean, remove dust from body lines, and wipe the panel with the correct cleaner using a wet-wipe and dry-wipe method. Solvent should lift contamination, not spread it. After that, I tack the surface lightly, especially around repair edges and masked transitions.

For this workflow, I treat the lvlp spray gun Professional Automotive Tools setup as a repeatable process. First, confirm the gun is clean. Inspect the fluid tip, needle, and air cap holes under good light. Dried clear or primer dust around the cap can bend the pattern and cause heavy loading on one side. Next, connect the gun to a dry air supply and set the pressure with the trigger fully pulled. Static pressure at the wall is not enough because pressure drops through hoses, couplers, and filters during actual spraying.

Although every air spray gun has its own feel, the adjustment sequence should stay disciplined. Open the fan to a practical width, not always maximum width. Then set the fluid control so the pattern is even, wet in the center, and soft at the edges. Spray a test pattern on masking paper before touching the vehicle. A clean pattern should not have heavy tails, splitting, spitting, or dry grain.

For basecoat, I use steady speed and controlled overlap. Keep the gun square to the panel and maintain a consistent distance. On broad panels, 50% overlap is a reliable starting point. On bumper curves and rocker sections, shorten the stroke and follow the contour instead of bending the wrist. Metallic basecoat must be applied with stable movement so flake orientation stays uniform.

For clearcoat, the key is atomization balance. The first coat should be medium-wet and controlled, giving the second coat a stable foundation. The second coat should build gloss without flooding edges or lower body lines. Watch the reflection line as you move. If it closes smoothly behind the pass, the film is building correctly. After spraying, flush the gun immediately and clean the cap, tip, needle, and cup before residue hardens.
