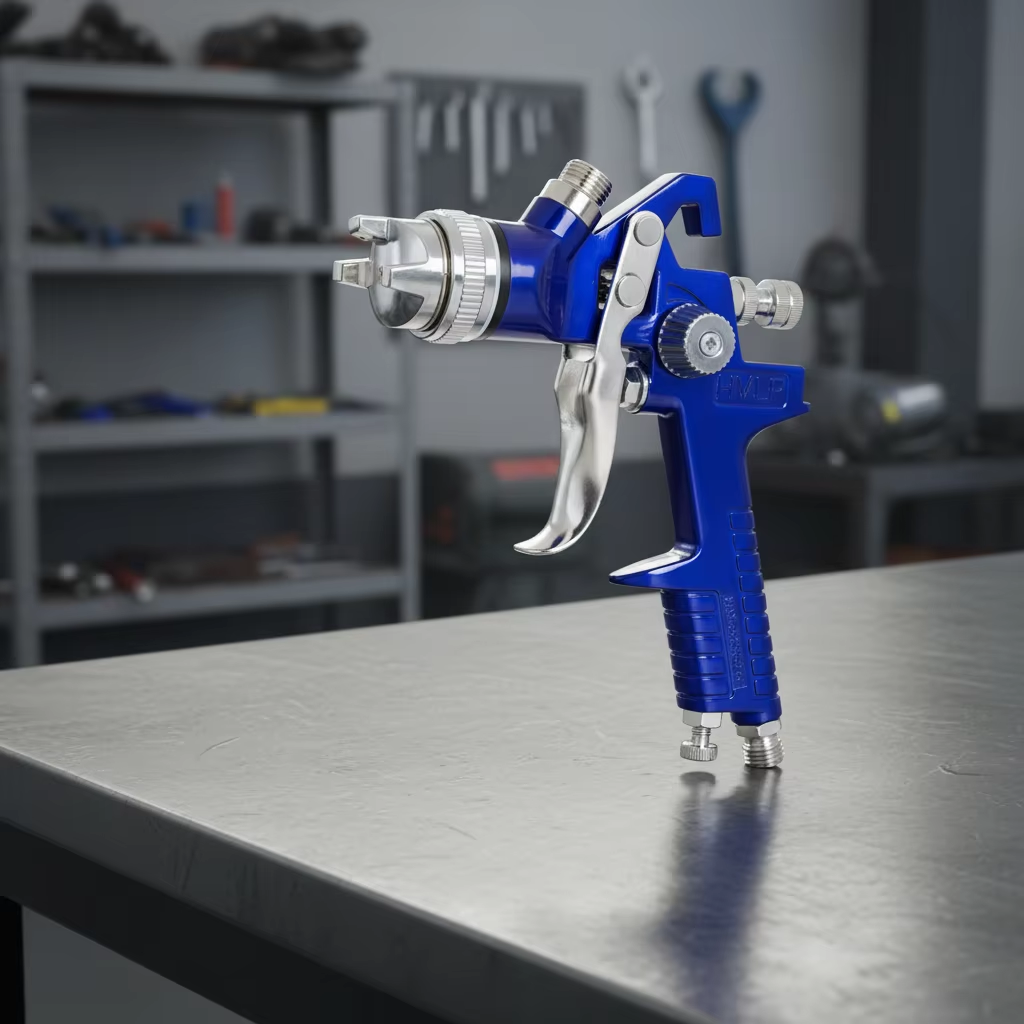

Basecoat accuracy is where a professional painter proves control. Primer can be blocked straight and the repair edge can be perfect, but if the basecoat is sprayed with poor atomization or unstable overlap, the vehicle will show clouding, striping, color shift, or dry texture under clear. When I tune an adjustable LVLP spray gun for basecoat, I focus on three things: pattern shape, droplet quality, and repeatable hand movement.
Start with the material. Mix the basecoat according to the paint system, use the recommended reducer speed for booth temperature, and strain the material before filling the cup. If the basecoat is too cold or too thick, it may not atomize evenly. If the reducer is too fast for the booth, the material can land dry before it flows into the previous pass. These details are especially important on metallic and pearl colors because flake orientation changes with wetness, pressure, distance, and pass speed.
Before spraying the vehicle, I use the lvlp spray gun Professional Automotive Tools method as a setup checklist. The gun must be clean, the needle must seat correctly, and the air cap must not have blocked horn holes. Set pressure at the handle with the trigger pulled fully open. Then spray a short pattern on masking paper. The pattern should be long, even, and slightly soft at the edge. If one side is heavy, clean the cap and inspect the tip. If the center is overloaded, reduce fluid slightly or improve atomization.
An air spray gun should never be tuned by sound alone. A gun can sound smooth and still produce a poor pattern. Look at the spray-out card, then adjust in small steps. Open the fan only as wide as the panel requires. A wide fan is useful on hoods and doors, but it can create waste and edge loading on bumpers, pillars, and small repaired areas. Fluid delivery should match hand speed. Too much fluid forces the painter to move quickly and can create mottling. Too little fluid makes the painter slow down and may create dry bands.
When applying basecoat, keep the gun square to the surface. Move the arm, not only the wrist. Maintain a consistent distance and use a controlled 50% overlap on open panels. At the blend area, extend each pass gradually and avoid stopping in the same place. For metallic colors, I watch for refinish workflow control, meaning pressure, distance, overlap, and speed remain stable from the repair center into the blend zone.
After coverage is achieved, do not overload the panel trying to create gloss. Basecoat should look even, not wet like clearcoat. Allow proper flash time between coats. If a control coat is required, reduce pressure and follow the paint maker’s procedure. Good basecoat is built through restraint, not force.
