Beginners often believe that every paint defect can be solved by turning another knob. In reality, blind adjustment usually creates more problems. If pressure, fluid control, fan width, reducer ratio, and travel speed are changed at the same time, the painter no longer knows which variable caused the improvement or the defect. A professional setup method isolates one variable at a time.
Start with the coating manufacturer’s technical data sheet. Confirm mixing ratio, viscosity, reducer speed, recommended nozzle size, and inlet pressure. Do not guess. Many poor spray patterns begin before the painter touches the trigger. If the material is too thick, pressure adjustments will not solve poor atomization. If reducer is too fast for booth temperature, the finish may dry before leveling.

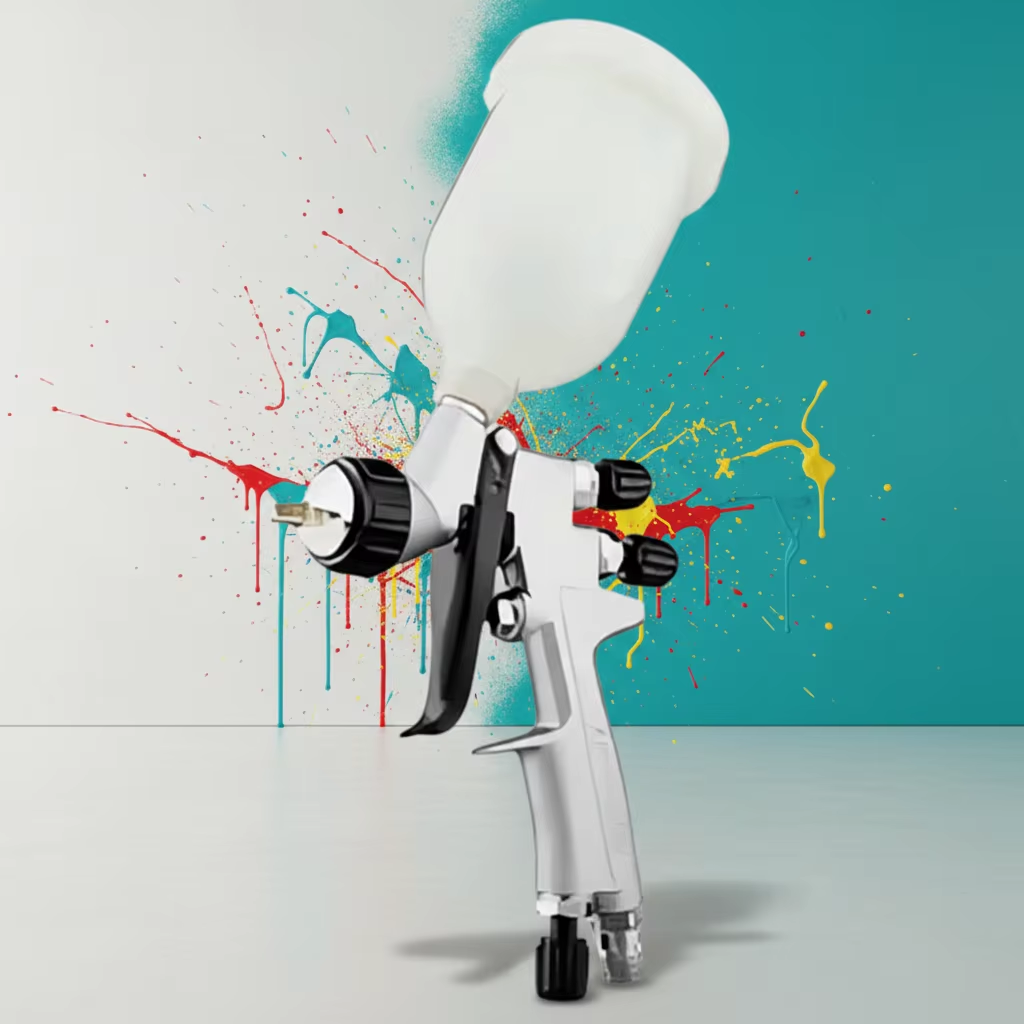

Next, set the gun mechanically. Open the fan to the recommended width, set fluid control to a baseline position, and adjust inlet pressure with the trigger fully pulled. Always measure dynamic pressure, not static pressure. A gauge reading without trigger pull is not useful. When using LVLP Spray Gun Ergonomic trigger, Low-resistance pressing, the painter can hold a consistent full-trigger position with less finger strain, which makes pressure checking more repeatable.
Spray a test pattern on masking paper. Look for three things: pattern shape, material distribution, and edge quality. A correct pattern should be tall, even, and balanced. If the pattern is heavy on one side, clean the air cap before changing pressure. If the center is overloaded, check fluid setting and distance. If the edges are dry and dusty, evaluate pressure, reducer speed, and gun distance.
Only adjust one parameter at a time. For example, if atomization is coarse, increase pressure slightly, test again, and observe. If the pattern is too wet, reduce fluid in small increments or increase travel speed. Do not reduce fluid, increase pressure, and change overlap all at once. That habit creates confusion and inconsistent repair quality.
Beginners should also record settings. Write down nozzle size, coating type, temperature, pressure, fluid turns, fan setting, and result. Over time, these notes become a workshop reference. A well-documented air spray gun setup saves material and reduces rework.
During panel spraying, resist the urge to adjust halfway through unless there is a clear mechanical issue. Many defects come from movement, not gun setting. Check whether your wrist is arcing, whether distance changes near panel edges, or whether overlap is inconsistent. Body position can create the same symptoms as poor atomization.
A controlled setup workflow is: mix correctly, filter material, set pressure under trigger, test pattern, adjust one variable, spray sample, then spray the panel. LVLP Spray Gun Ergonomic trigger, Low-resistance pressing helps maintain stable control, but the real professional advantage comes from discipline. Diagnose first, adjust second, and document the result.
