Article Summary: Orange peel in high-gloss automotive clear coat is usually caused by poor atomization, incorrect viscosity, unstable air pressure, excessive film build, short flash control, or wrong gun distance. This article explains how a refinishing technician can reduce texture through practical spray setup, material preparation, air adjustment, overlap control, and final inspection before polishing.
Read the Clear Coat Before You Blame the Product
Orange peel is not only a cosmetic defect; it shows that the clear coat failed to flow out before the solvent window closed. In a body shop, I first check material temperature, panel temperature, reducer speed, and atomization. A cold clear, a fast reducer in a warm booth, or a dry spray distance can all leave a high-gloss surface with a pebbled reflection.

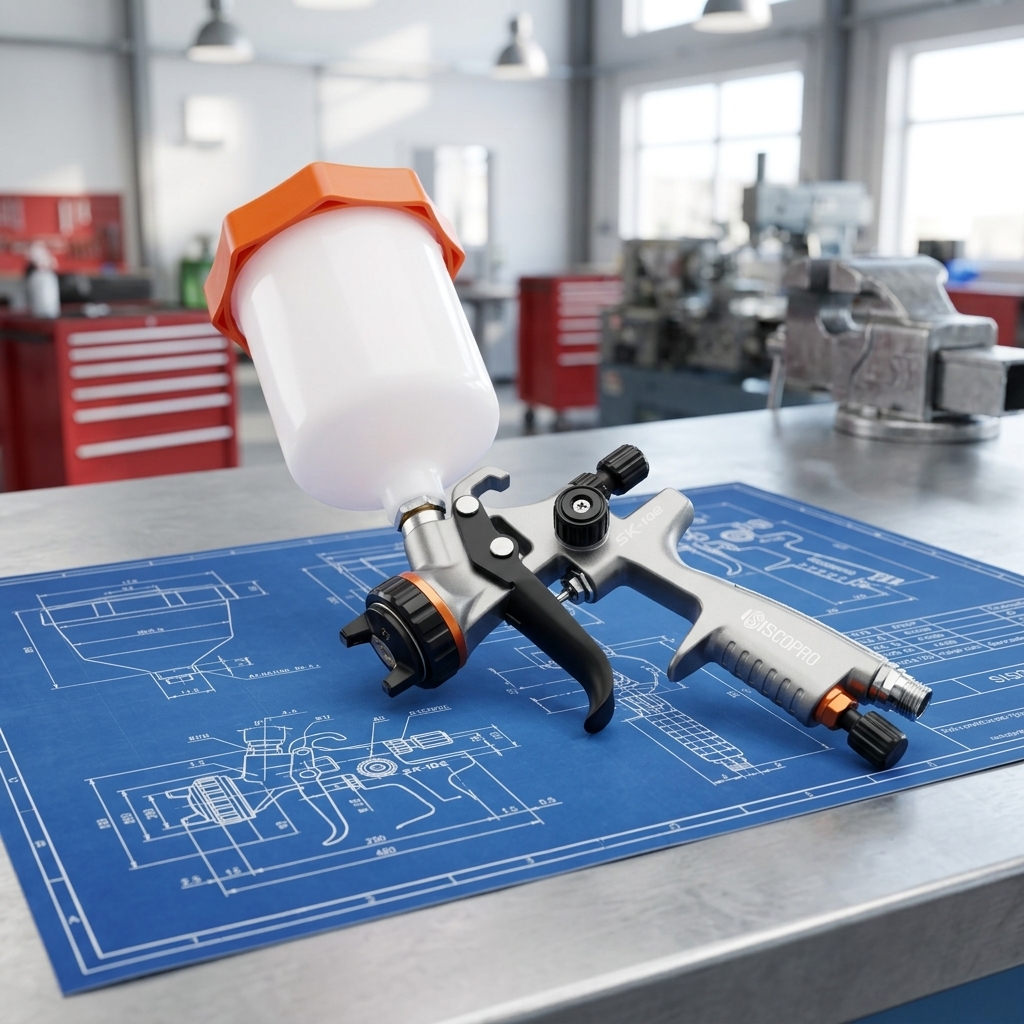

For spot repair, bumper corners, pillars, and tight blend zones, an LVLP Spray Gun Narrow Fan Adjustable setup gives better control than a wide-open pattern. Start with the coating maker’s mix ratio, strain the clear, and let the material stabilize at booth temperature. Do not over-reduce unless the technical data sheet allows it.
Set the Gun Under Trigger Pressure
Connect clean air, pull the trigger fully, and set inlet pressure while air is flowing. Static pressure readings are misleading. Spray a test pattern on masking paper: the pattern should be even from top to bottom, with no heavy center, split edge, or dry tail. A gun with Hidden Channel Design can support smoother air and fluid movement, but pressure stability and cleanliness still decide the final finish.
Use one controlled air spray gun test pass at the same distance and speed planned for the panel. If droplets look coarse, increase atomization slightly or reduce fluid delivery. If the film lands dry, move closer, slow the pass, or select a slower reducer. On most clear coat jobs, keep the gun 15–20 cm from the surface and maintain about 70% overlap on wide panels.
Apply Wet, Not Heavy
The first coat should be medium-wet and uniform. It creates the foundation, but it does not need to deliver final gloss alone. After the correct flash, apply the second coat wetter while watching vertical edges, roof rails, and bumper lips. The surface should look continuous under booth lighting, not sandy and not overloaded.
When moving from a hood or door skin to a narrow edge, the LVLP Spray Gun Narrow Fan Adjustable pattern helps reduce fan width without dumping too much material. This is useful for avoiding dry overspray on adjacent areas while keeping the repair edge wet enough to level.
Clean the Passages Before Finish Work
Dried clear around the air cap, nozzle seat, needle tip, or fluid passage creates uneven particle size. Even a gun using Hidden Channel Design must be flushed after clear coat sessions, then checked with clean solvent and low-pressure air. Before the final coat, verify fan shape, trigger response, fluid knob position, booth temperature, panel temperature, flash time, and lighting reflection. When these variables are controlled, orange peel is reduced at the spray stage instead of being corrected later with aggressive sanding and polishing.
