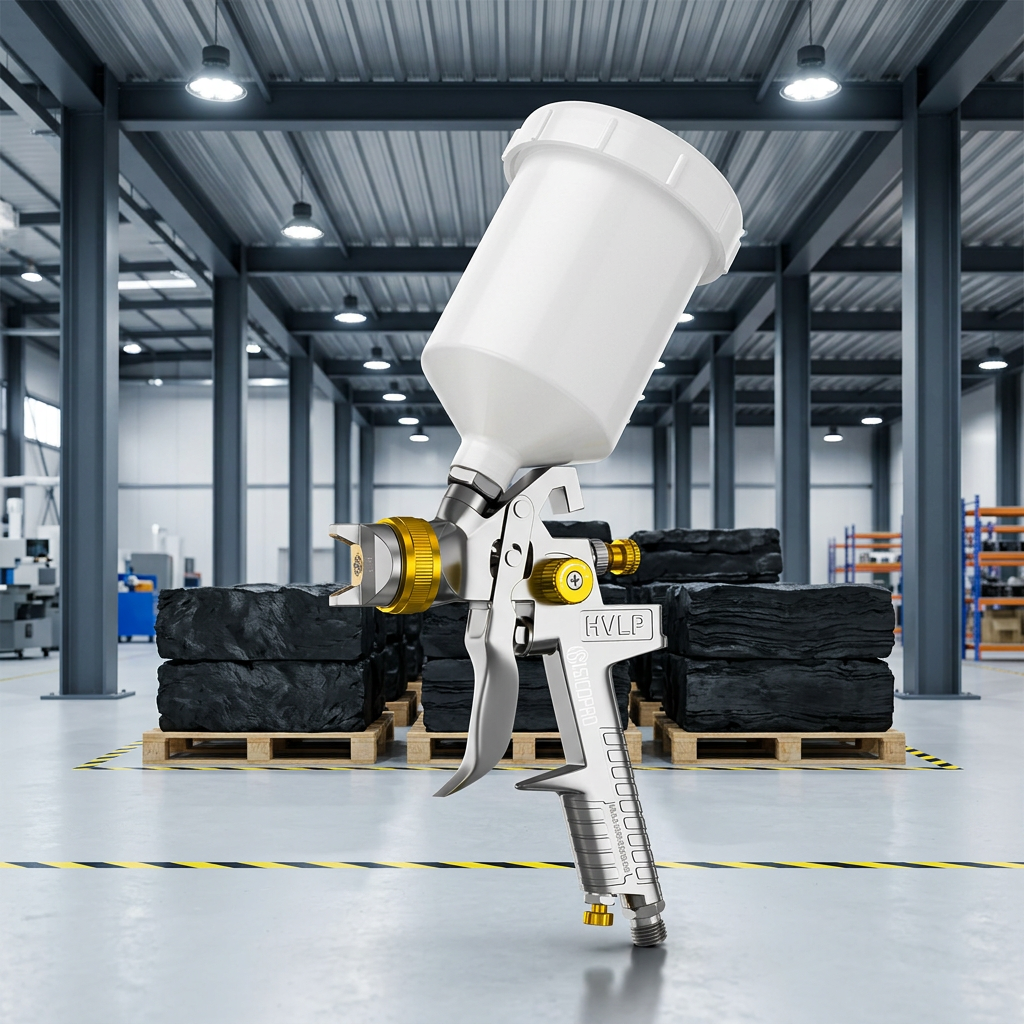

Built for workshop and production environments, this spray gun combines a lightweight alloy body with precision controls for consistent coating results.
Product type: Industrial paint spray gun
Technology: HVLP
Feed style: Gravity feed
Cup capacity: 600 ml
Cup position: Top mounted
Body material: Aluminum alloy
Nozzle material: Stainless steel
Needle material: Stainless steel
Air cap material: Precision metal alloy
Body finish: Polished silver
Adjustment finish: Gold anodized
Air inlet: 1/4 inch threaded
Working pressure: 2.0–3.5 bar
Pressure equivalent: 29–50 psi
Air consumption: 4.2–7.1 CFM
Spray width: Approx. 180–250 mm
Atomization quality: Fine
Coating pattern: Even
Transfer efficiency: High
Overspray: Low
Fluid adjustment: Yes
Fan pattern adjustment: Yes
Airflow adjustment: Yes
Trigger: Smooth pull
Grip: Ergonomic ribbed handle
Balance: Top-cup balanced
Operation mode: Compressed air
Compressor required: Yes
Primary use: Industrial coating
Automotive use: Body panels and refinishing
Metal use: Machinery and fabricated parts
Wood use: Furniture and cabinetry
Plastic use: Suitable with compatible coatings
Primer use: Supported
Basecoat use: Supported
Topcoat use: Supported
Clear coat use: Supported
Paint viscosity: Low to medium
Cleaning: Detachable fluid path
Maintenance: Replaceable nozzle and needle
Corrosion resistance: Good
Durability: Workshop grade
User level: Professional
Environment: Factory and repair shop
Safety recommendation: Use respiratory and eye protection
The adjustable fan, fluid and air controls allow the operator to tune the spray for different substrates, coating viscosities and finish requirements.
