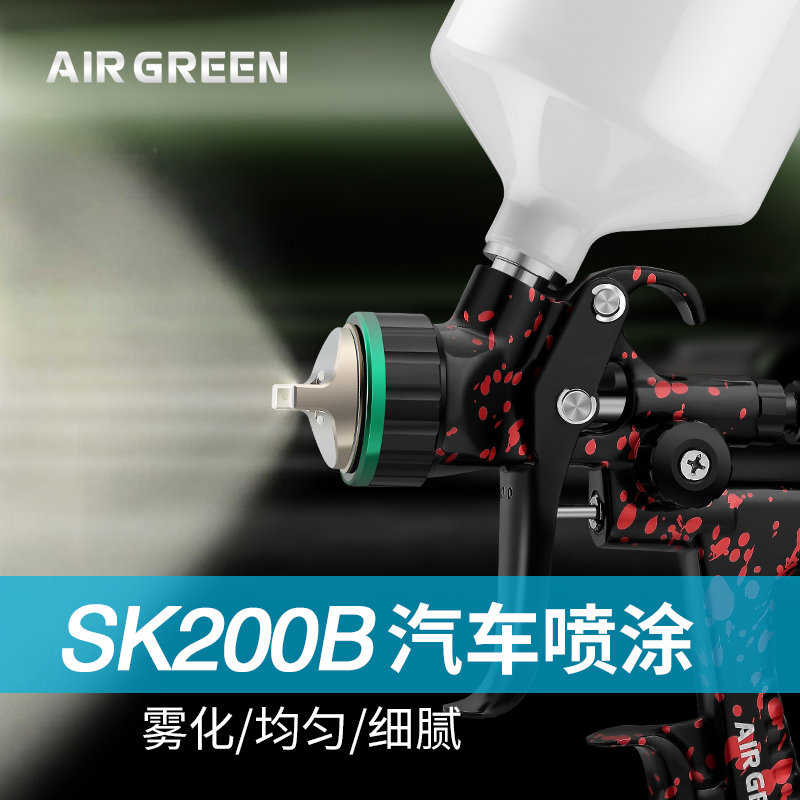

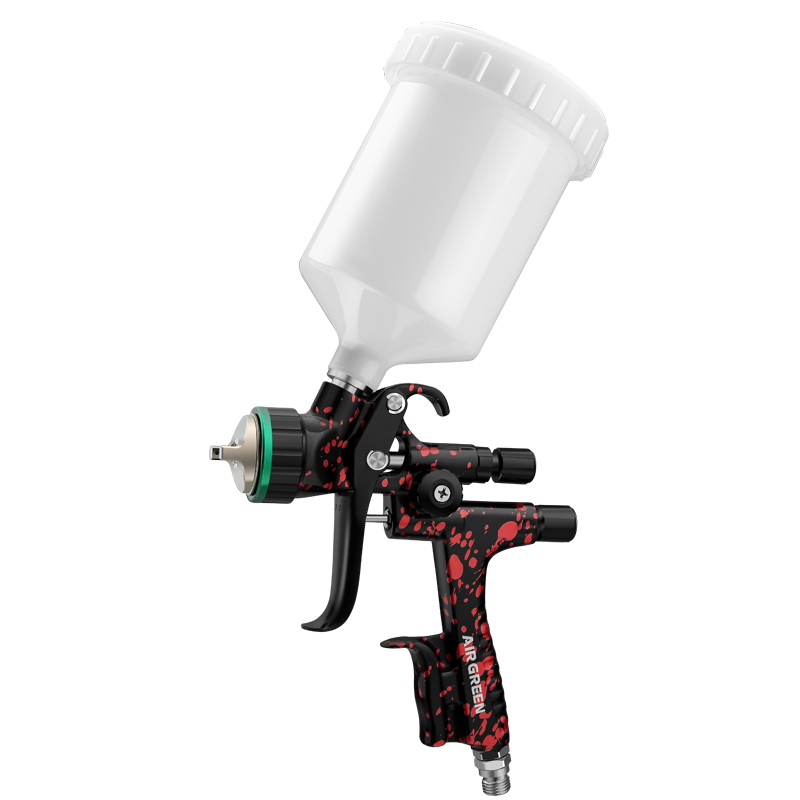

Model: S200B
Design: Custom Splatter-Style Finish
Technology: LVLP (Low Volume Low Pressure)
Feed Type: Gravity Feed
Application: Automotive, Industrial, Wood Finishing
Nozzle Size Options: 1.3mm / 1.4mm / 1.5mm
Needle & Nozzle: High-grade Stainless Steel

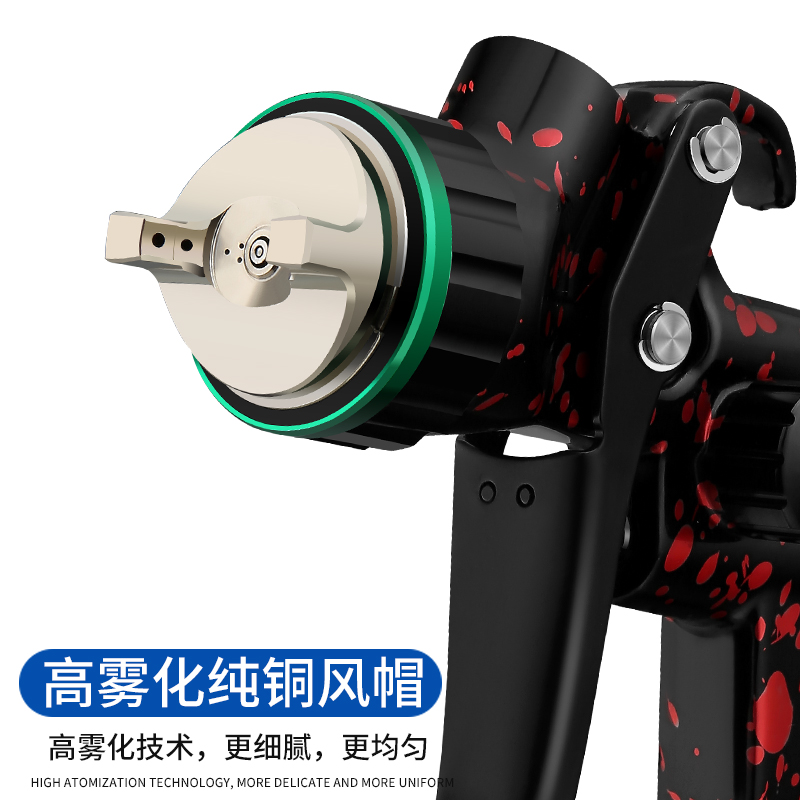

Air Cap: Precision-machined, anodized finish
Cup Capacity: 600ml Plastic Gravity Cup
Spray Pattern: Wide, adjustable fan
Spray Width: Up to 280mm
Body Material: Forged aluminum alloy
Air Pressure: 1.5 - 2.0 bar (22 - 29 psi)
Air Consumption: 2.0 - 2.4 CFM
Transfer Efficiency: Up to 78%
Finish Quality: Mirror-smooth surface
Grip Type: Ergonomic anti-slip
Control Knobs: Fan, fluid, air regulation
Trigger Type: Two-stage with soft pull
Paint Types: Solvent and water-based
Recommended Distance: 15 - 20 cm
Connection Thread: 1/4" BSP/NPT
Weight: Approx. 490g (without cup)
Noise Level: Low
Color Style: Black with Red Splatter
Durability: Corrosion and wear-resistant body
Cleaning: Tool-free disassembly
Maintenance: Easy internal access for cleaning
Use Case: Touch-up, basecoat, topcoat
Included Tools: Wrench, cleaning brush, filter
Compatible Systems: PPS-compatible cup system
Finish Category: High-gloss automotive level
Spray Quality: Consistent fine mist atomization
Eco-Friendly: Low paint loss, reduced VOCs
Reliability: Built for frequent use
Certification: CE & ISO Compliant
Operation Temp: 5°C – 45°C
Recommended Compressor: ≥ 1 HP
Warranty: 1-year manufacturer warranty
Packaging: Foam-lined box with manual
