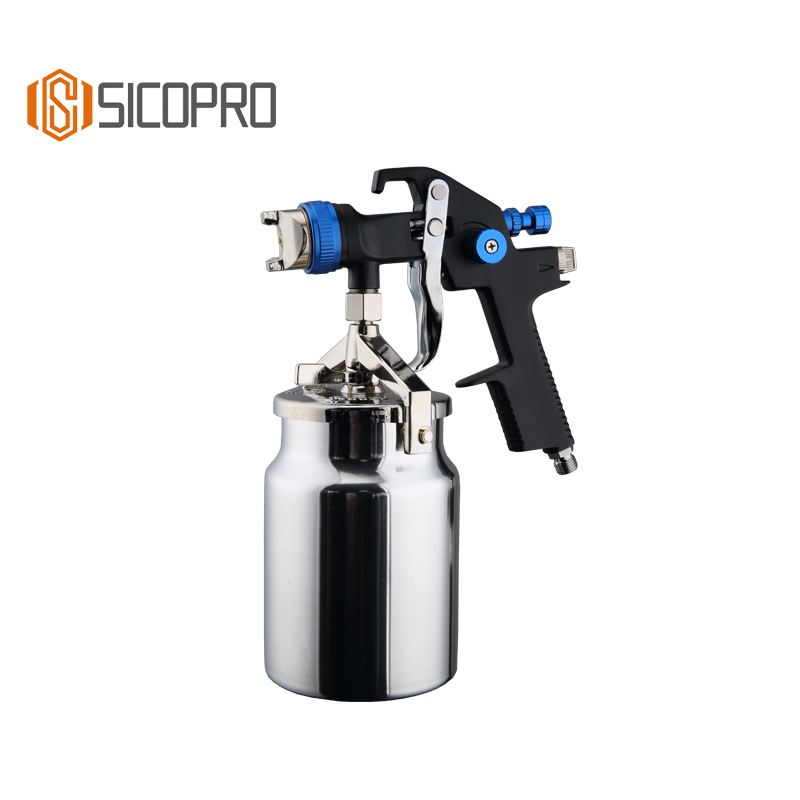

Model: AB17S

Spray Type: LVLP (Low Volume Low Pressure)

Feed Type: Suction

Nozzle Size: 1.5mm / 1.8mm / 2.0mm (optional)

Air Inlet: G1/4"

Operating Pressure: 2.0-3.5 bar

Pattern Width: 200-280mm

Paint Capacity: 1000ml (metal cup)

Air Consumption: 3.0-4.0 CFM

Material: Stainless steel needle and nozzle

Body: High-strength aluminum alloy

Application: Automotive, industrial, marine, woodworking

Trigger Type: Double-action

Air Cap: Brass for precision spray pattern

Grip: Ergonomic molded handle

Finish: Durable anodized surface

Control Knobs: Fluid, fan, and air control

Spray Pattern: Adjustable circular to fan

Usage: Primer, sealers, top coats, lacquer

Transfer Efficiency: Up to 78%

Maintenance: Tool-free disassembly

Weight: Approx. 750g

Spray Distance: 15-25cm

Compatible Materials: Thick coatings, water-based paints

Cup Material: Stainless steel

Color: Black body with chrome cup and blue controls

Spray Finish: Smooth and uniform coating

Usability: Excellent for heavy-duty continuous spraying

Seal Type: PTFE seals for chemical resistance

Noise Level: Quiet operation

Temperature Resistance: Up to 60°C

Included Accessories: Filter, wrench, brush

Warranty: 1 year

OEM Support: Yes

Environmental Benefit: Reduced overspray & paint loss

Compliance: CE and ISO certifications

Service Life: High durability under frequent use

Usage: Ideal for workshops, garages, production lines

Cleaning: Compatible with cleaning systems

Portability: Integrated hanging hook
