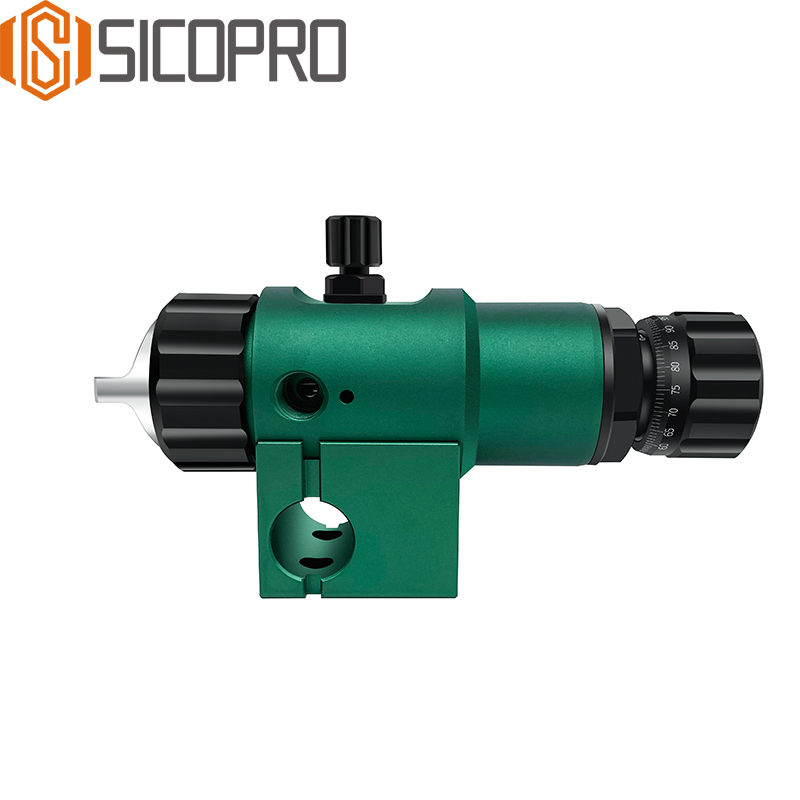

Model: WA-2020

Type: LVLP Automatic Spray Gun

Feed Type: Pressure-fed

Nozzle Sizes: 0.8mm / 1.0mm / 1.3mm

Nozzle Material: Stainless Steel

Needle Material: Stainless Steel

Air Cap: Brass, CNC-machined

Gun Body Material: Hard anodized aluminum

Trigger Mechanism: Pneumatic automatic

Spray Pattern: Round and fan adjustable

Working Pressure: 2.0 - 3.0 bar

Air Consumption: 120 - 180 L/min

Fluid Output: 100 - 160 ml/min

Spray Width: 150 - 230mm

Air Inlet: G1/4"

Weight: Approx. 350g

Application: Automatic spray lines, furniture, electronics, car parts

Paint Types: Water-based, solvent-based

Automation Compatibility: Yes

Control: Precise pressure regulators & flow control

Mounting Type: Clamp fixture design

Spray Direction: Adjustable 360° nozzle head

Eco-Friendly: High transfer efficiency, reduced overspray

Temperature Tolerance: -10°C to 70°C

Corrosion Resistance: High

Noise Level: Low (quiet pneumatic trigger)

Maintenance: Tool-free quick disassembly

Design Features: Industrial-grade seals and fittings

Production Use: Continuous duty cycle support

Finish Quality: Consistent, smooth, high-gloss

OEM Support: Available

Safety: Leak-free dual sealing structure

Included Accessories: Wrench, connectors, filters

Mount Orientation: Horizontal or vertical

Certifications: CE Certified

Usage: Robotic arms, conveyor belt lines

Surface Suitability: Wood, plastic, metal, ceramics

Adjustability: Fine tuning of fan pattern and output

Durability: Long-lasting industrial-grade body

Material Compatibility: Compatible with aggressive solvents

Finish Type: Professional, blemish-free results
