SICOPRO LVLP Gravity Feed Paint Spray Gun Kit

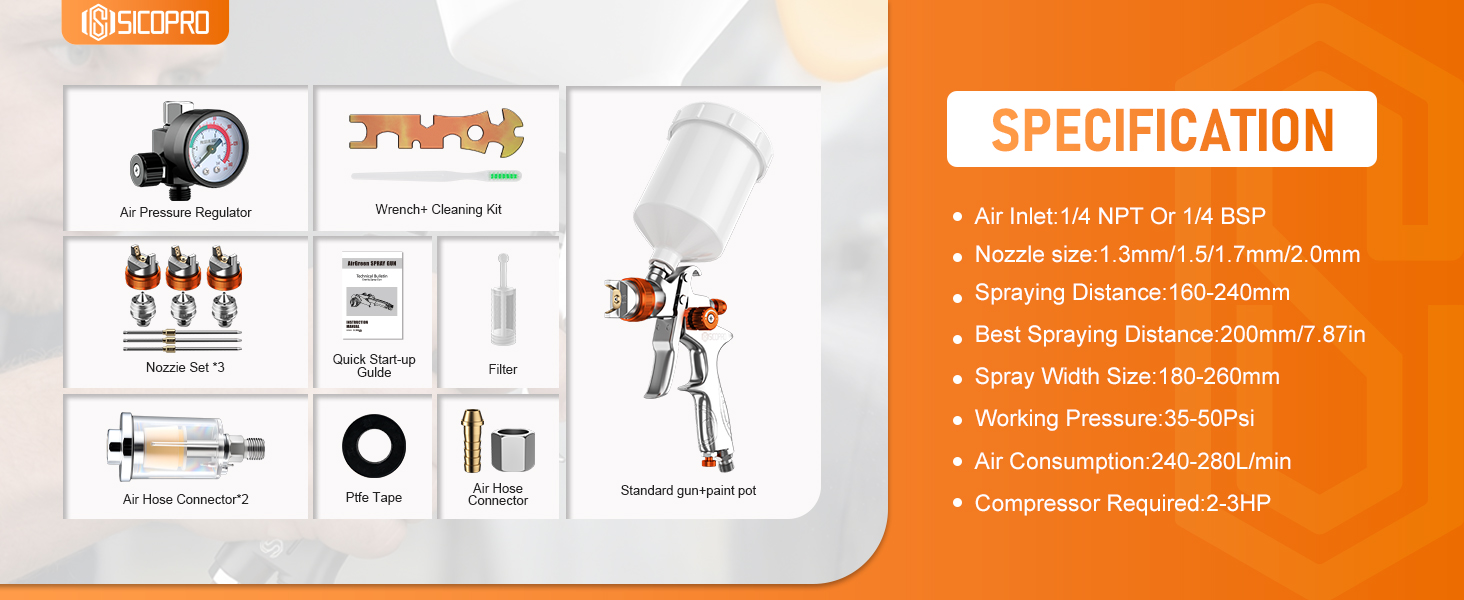

This LVLP gravity feed paint spray gun kit is designed for efficient coating application, automotive refinishing, furniture spraying, repair work, touch-up painting and fine finish jobs. The set shown includes the spray gun, paint cup, air pressure regulator, nozzles, connectors, filter, PTFE tape, wrench, cleaning brush and quick start guide.

Key Specifications & Product Attributes

• 1. Product type: LVLP gravity feed paint spray gun kit

• 2. Brand shown: SICOPRO

• 3. Spray technology: Low Volume Low Pressure spraying

• 4. Feed type: Gravity feed paint pot

• 5. Air inlet: 1/4 NPT or 1/4 BSP

• 6. Nozzle sizes: 1.3 mm, 1.5 mm, 1.7 mm and 2.0 mm

• 7. Spraying distance: 160–240 mm

• 8. Best spraying distance: 200 mm / 7.87 in

• 9. Spray width: 180–260 mm

• 10. Working pressure: 35–50 PSI

• 11. Air consumption: 240–280 L/min

• 12. Recommended compressor: 2–3 HP

• 13. Cup style: Upper paint cup / gravity paint pot

• 14. Gun body appearance: Polished silver metal finish

• 15. Adjustment knobs: Orange control knobs as shown

• 16. Included regulator: Air pressure regulator with gauge

• 17. Included nozzle kit: Three extra nozzle sets shown

• 18. Included tool: Multi-function wrench

• 19. Included cleaning accessory: Cleaning brush / cleaning kit

• 20. Included guide: Quick start-up guide

• 21. Included filter: Inline paint or air filter shown

• 22. Included connector: Air hose connector set

• 23. Included tape: PTFE sealing tape

• 24. Connector quantity shown: Two air hose connector components plus additional connector fitting

• 25. Main application: Automotive paint refinishing

• 26. Secondary application: Furniture refinishing

• 27. Additional application: DIY coating and repair spraying

• 28. Suitable for: Basecoat, clearcoat, primer and general coating tasks depending on material viscosity

• 29. Finish capability: Fine finish and smooth atomization

• 30. Transfer efficiency: LVLP design helps reduce overspray and paint waste

• 31. Operation mode: Pneumatic air spray operation

• 32. Trigger design: Handheld trigger-controlled spraying

• 33. Pattern adjustment: Adjustable spray pattern control

• 34. Fluid adjustment: Paint output can be adjusted for different coating needs

• 35. Air adjustment: Airflow can be controlled with the regulator and gun settings

• 36. Recommended use distance: Keep around 200 mm from the workpiece for best results

• 37. Spray fan range: Medium to wide fan pattern from 180 mm to 260 mm

• 38. Nozzle flexibility: Multiple nozzle sizes support different paint thicknesses and job types

• 39. Setup convenience: Complete accessory kit supports quick installation

• 40. Maintenance support: Wrench and cleaning brush assist routine cleaning

• 41. Sealing support: PTFE tape helps improve threaded connection sealing

• 42. Pressure monitoring: Gauge helps check spraying air pressure

• 43. Paint cup position: Top-mounted cup supports stable gravity flow

• 44. Suitable users: Body shops, workshops, painters and DIY users

• 45. Compatible compressor class: 2–3 HP air compressor range

• 46. Low-pressure feature: Designed to work at lower pressure than traditional high-pressure spray guns

• 47. Overspray control: Helps make the working area cleaner when used correctly

• 48. Coverage performance: 180–260 mm spray width supports efficient panel coverage

• 49. Port compatibility: 1/4-inch inlet configuration for common air hose setups

• 50. Package configuration: Standard gun, paint pot and multiple accessories as shown

• 51. Typical coating scenes: Car panels, bumpers, metal parts, wood surfaces, cabinets and doors

• 52. Cleaning requirement: Clean immediately after spraying to maintain atomization quality

• 53. Installation note: Use matched fittings and seal threaded joints before air connection

• 54. Performance focus: Balanced atomization, reduced paint consumption and controlled spray fan

• 55. Product positioning: Complete LVLP refinishing spray gun set for professional and workshop use

Package Includes

• 1 × Standard LVLP spray gun with paint pot

• 1 × Air pressure regulator with gauge

• 3 × Nozzle sets as shown

• 1 × Wrench and cleaning kit

• 1 × Quick start-up guide

• 1 × Filter

• 2 × Air hose connector components as shown

• 1 × PTFE tape

• Additional air hose connector fitting as shown

Recommended Applications

Ideal for automotive refinishing, car repair painting, furniture refinishing, cabinet coating, metal part spraying, wood surface finishing, touch-up paint work, workshop maintenance and general coating applications. The multiple nozzle sizes allow the user to adapt the spray gun to different coating materials and finish requirements.
