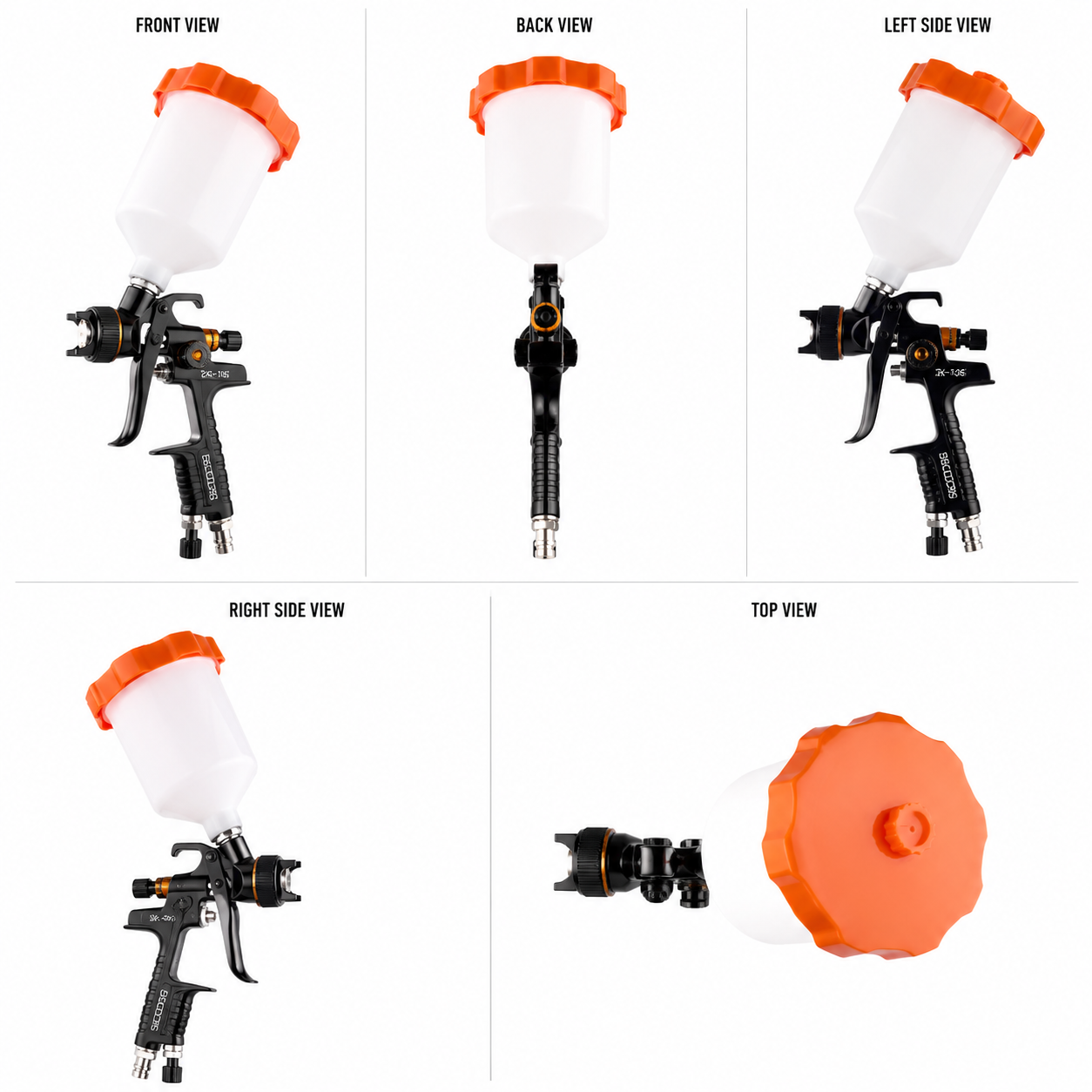

The SK-106 HVLP spray gun features a balanced gravity feed layout shown from front, back, left side, right side and top views. It is made for controlled spraying, easy handling and smooth finishes on many coating projects.
1. Model: SK-106
2. Product type: HVLP gravity feed spray gun
3. View shown: Front view
4. View shown: Back view
5. View shown: Left side view
6. View shown: Right side view
7. View shown: Top view
8. Cup position: Angled top mounted cup
9. Cup capacity: 600 ml
10. Cup body: Translucent white plastic cup
11. Cup lid: Orange wide grip lid
12. Lid style: Textured edge for easy opening
13. Gun body: Black metal body
14. Handle: Textured ergonomic handle
15. Trigger: Curved trigger for controlled operation
16. Air inlet: Bottom connection point
17. Adjustment knob: Rear control knob
18. Side control: Side mounted adjustment control
19. Front ring: Large front retaining ring
20. Air cap: Precision air cap assembly
21. Nozzle: Stainless steel nozzle system
22. Needle: Stainless steel fluid needle
23. Nozzle seat: Brass seating component
24. Spray pattern: Adjustable pattern output
25. Fluid flow: Adjustable paint flow output
26. Air flow: Adjustable air volume control
27. Atomization: Fine spray atomization
28. Finish result: Smooth, even coating
29. Overspray: Designed to minimize overspray
30. Efficiency: High transfer efficiency
31. Application: Automotive refinishing
32. Application: Furniture coating
33. Application: Metal surface painting
34. Application: Wood finishing
35. Application: DIY painting projects
36. Coating support: Primer use
37. Coating support: Basecoat use
38. Coating support: Clearcoat use
39. Maintenance: Detachable nozzle parts
40. Cleaning: Easy cleaning after spraying
41. Storage: Compact handheld tool format
42. Main benefit: Clear structure, precise control and professional spraying
The multi angle design display highlights the cup position, trigger, air inlet, control knobs and nozzle structure, helping users understand the spray gun layout before operation.
