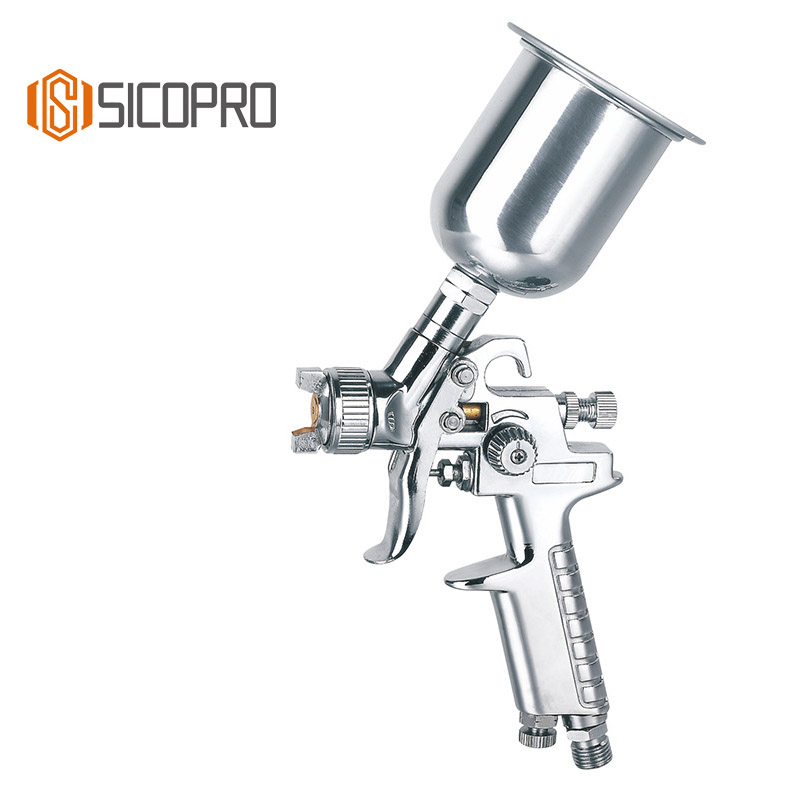

Model: H2000
Type: LVLP (Low Volume Low Pressure) / Gravity Feed
Nozzle Sizes: 0.5 mm / 0.8 mm / 1.0 mm (optional)
Air Inlet Size: 1/4 inch thread
Cup Capacity: Approx. 125 ml
Material: Metal body (chrome-plated or anodized alloy), stainless steel needle/nozzle
Surface Treatment: Chrome plating / polished / corrosion-resistant
Air Consumption: Approx. 2.0‑4.5 CFM (56‑127 L/min)
Working Pressure: 29‑50 psi (2.0‑3.5 bar)
Spray Pattern Width: 10‑15 cm (adjustable)
Feed Type: Gravity feed
Applications: Suitable for water-based & solvent-based paints, automotive paint, furniture lacquer, metal finishes
Adjustment Options: Fluid control, air control, and spray width control knobs
Spray Pattern: Adjustable from round to fan shape
Trigger: Smooth pull trigger with ergonomic grip design
Weight: Approx. 0.3‑0.4 kg with cup
Industries: Automotive refinishing, furniture repair, metal coating, model painting, and more
Benefits: Low overspray, high transfer efficiency, fine atomization, detail-friendly
Limitations: Best suited for small/medium surfaces; needs compatible compressor and hose
Included Accessories: Optional nozzles, cleaning brush, hose connector, spare seals
Maintenance: Clean immediately after use with appropriate solvent; store dry and dust-free
Packaging: Typically includes spray gun, cup, cleaning tool, manual
OEM/ODM: Supported with color, logo, nozzle customization
Scenarios: 1. Car touch-up & bumper spraying; 2. Furniture refinishing; 3. Metal part coating; 4. Hobby airbrushing
Safety Tips: Use protective gear; ensure ventilation; follow paint dilution instructions
Finish Options: Chrome, matte black, colored variants available
Compatible Interface: 1/4″NPT or BSP thread
Compatibility: Works with most compressors, spray booths, static spray setups
Seal Quality: Uses chemical-resistant O-rings (Viton or NBR)
Corrosion Resistance: Stainless needle/nozzle ensures long-term durability
Origin: Zhejiang, China
