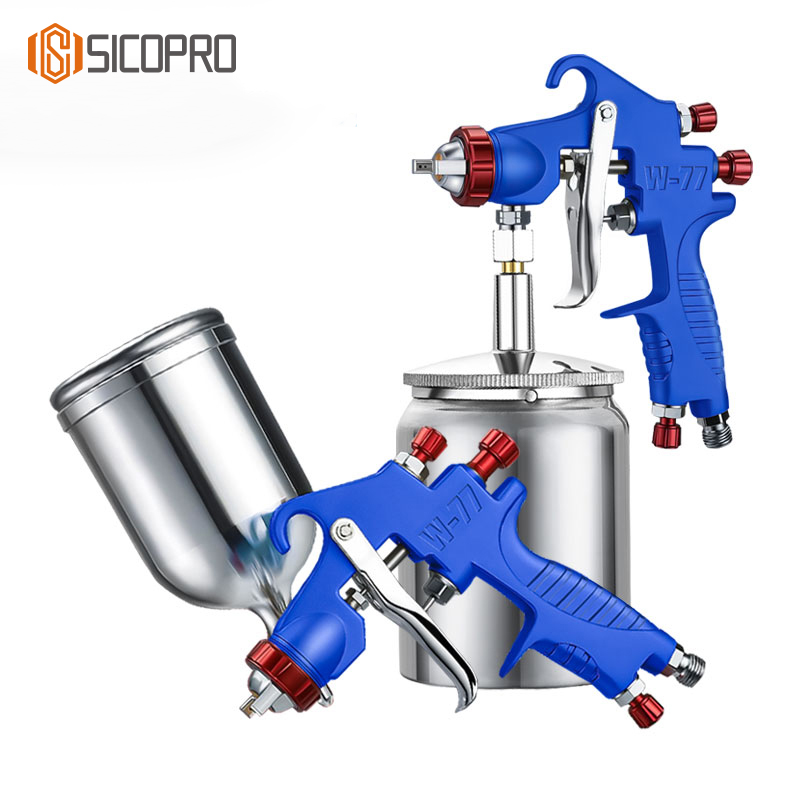

Model: W-77
Spray Type: LVLP (Low Volume Low Pressure)
Nozzle Sizes: 1.3mm / 1.5mm / 1.8mm optional
Material: Stainless steel nozzle and needle
Body Material: Aluminum alloy with ergonomic blue coating
Paint Cup Type: Available in both top and bottom feed
Paint Cup Capacity: 600ml (top feed) / 1000ml (bottom feed)
Working Pressure: 2.0 - 3.5 bar
Air Consumption: 4.0 - 6.0 CFM
Air Inlet Size: G1/4"
Application Fields: Automotive, woodworking, furniture, industrial coatings
Spray Pattern: Adjustable fan width
Transfer Efficiency: High, over 65%
Trigger Type: Double action
Air Cap: Brass
Precision Machining: Ensures even atomization
Durability: Corrosion-resistant materials
Weight: 600g (gun only)
Color: Blue and silver with red knobs
Finish: Anodized
Control: Fluid control, pattern control, air pressure control
Seal Type: PTFE resistant to solvents
Filter: Built-in paint filter
Package Includes: Spray gun, paint cup, wrench, cleaning brush, user manual
Compatible Materials: Solvent-based, water-based paints
Noise Level: Low
Cleaning: Easy disassembly for maintenance
Grip: Non-slip ergonomic handle
Design: Lightweight and balanced
Maintenance: Tool-free needle removal
Precision: Consistent spray pattern
Atomization: Fine atomization for smooth finish
Eco-Friendly: Minimizes overspray
Seal Material: Wear-resistant rubber and PTFE
Usage Time: Long continuous operation
Safety: Pressure relief valve equipped
Temperature Range: -10°C to 50°C
Warranty: 1 year
Certification: CE
Industry Use: Car painting, wood finishing, metal coatings
