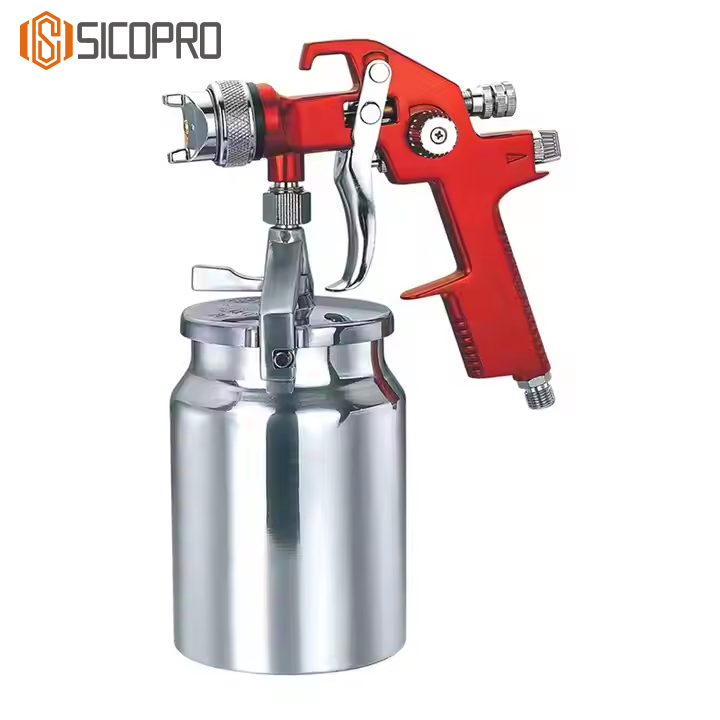

Model: AB-17S
Spray Type: LVLP (Low Volume Low Pressure)
Paint Feed: Suction / Bottom Cup
Body Material: Stainless Steel + Aluminum Cup
Nozzle Sizes: 1.3mm / 1.5mm / 1.8mm
Working Pressure: 2.0–3.5 bar
Air Consumption: 3.5–4.2 CFM
Spray Distance: 150–200mm
Paint Compatibility: Medium/Low Viscosity
Spray Pattern: 180–230mm width
Air Inlet: 1/4" BSP
Cup Capacity: 1000ml
Material of Cup: Stainless Steel
Adjustments: Fluid, Fan, and Air knobs
Finish: Fine and even spray, reduced overspray
Body Color: Red
Weight: Approx. 800g
Nozzle & Needle: Stainless Steel
Suitable Paints: Lacquers, Primers, Water-based, Clear Coats
Atomization: High
Transfer Efficiency: ≥80%
Energy Saving: Low air requirement
Maintenance: Simple structure for easy cleaning
Applications: Auto refinishing, Furniture, Industrial machinery
Ideal Users: Technicians, Painters, Refurbishers
Packing: Color box or blister
Usage Environment: Body shop, Workshop, Factory
Surface Treatment: Anodized/oxidized anti-corrosion
Thread Connection: Standard thread interface
Pressure Resistance: High strength shell
Accessories: Replaceable nozzles & needles
Spray Speed: Fast & efficient coating
Eco-Friendly: Low paint waste
Corrosion Resistance: Excellent
Sealing: Leak-proof O-rings
After-Sales: 1-Year warranty, lifetime service
Certification: CE
