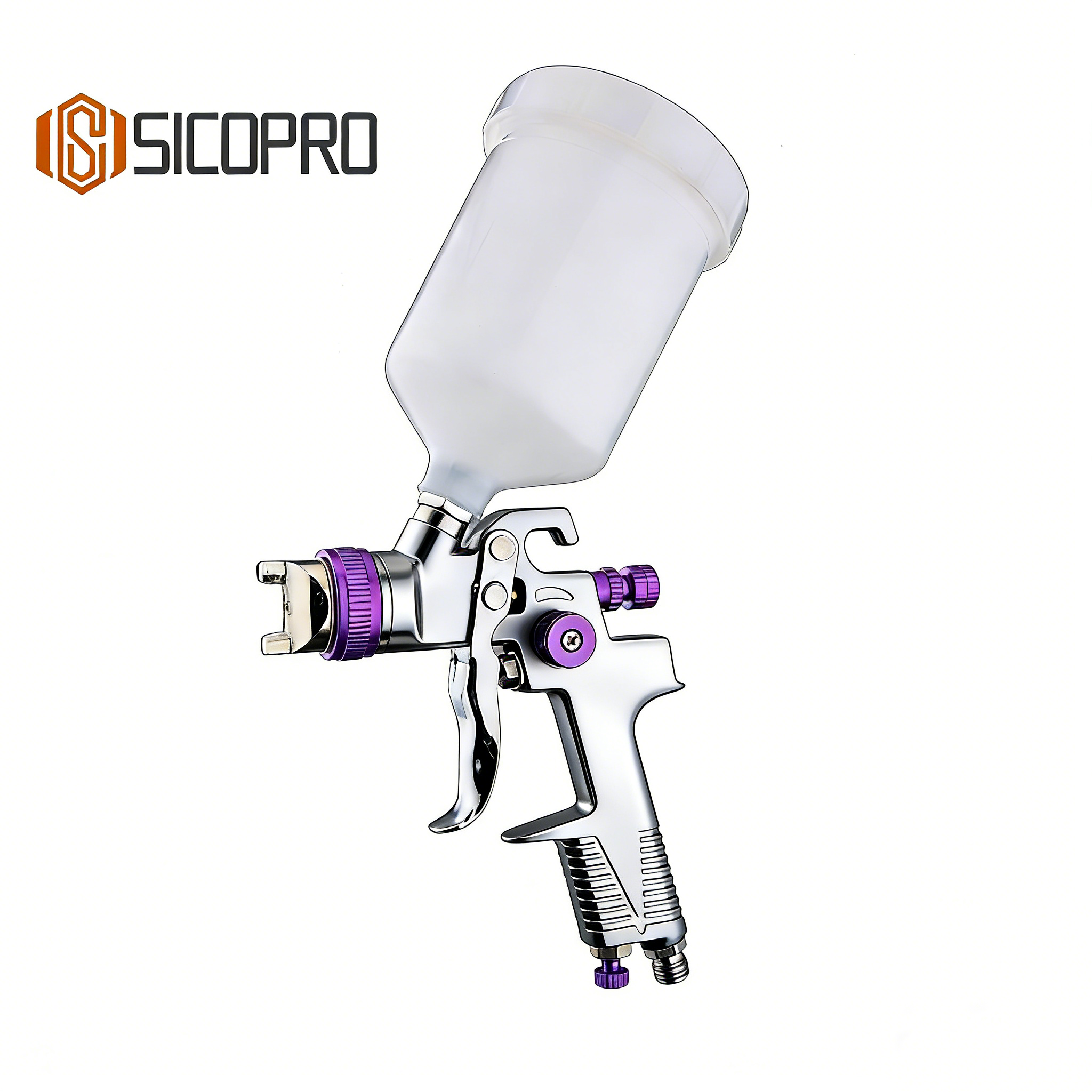

Model: H970P
Type: LVLP (Low Volume Low Pressure)
Feed Type: Gravity Feed
Material: Aluminum body with stainless steel nozzle
Nozzle Size: 1.3mm / 1.4mm / 1.7mm / 2.0mm optional
Air Inlet: G1/4"
Operating Pressure: 1.5 - 2.5 bar
Paint Capacity: 600ml (detachable plastic cup)
Transfer Efficiency: High (above 65%)
Atomization Quality: Fine
Spray Pattern: Adjustable (round to wide fan)
Air Consumption: Low (approx. 4.2 - 6.0 CFM)
Trigger Type: Double action
Control Knobs: Fluid control, Pattern control, Airflow control
Color Options: Chrome + Purple / Chrome + Black / Black + Purple / Chrome + Yellow
Application: Automotive paint, furniture, metal, plastic surface coating
Durability: Industrial grade
Usage: Professional and DIY users
Finish Quality: Mirror polished or matte
Weight: Approx. 500g
Grip: Ergonomic design
Maintenance: Easy to disassemble and clean
Compatibility: Water-based and solvent-based paints
Connector Thread: BSP/NPT optional
Cup Material: PP (Polypropylene)
Noise Level: Low
Recommended Compressor: 1.5HP+
Paint Flow Rate: 130 - 180 ml/min
Surface Treatment: Anodized knobs, chrome-plated body
Usage Scenario: Car painting, wood coating, craft spraying
Certification: CE approved
Operating Environment: Indoor spray booths, workshops
Cleaning Method: Manual / Ultrasonic compatible
Package: Box or blister pack available
Included Accessories: Wrench, cleaning brush, filter
Temperature Range: 5°C - 45°C
Humidity Range: 20% - 85% RH
OEM Service: Available
Warranty: 12 months
