Model: SK-335DL
Type: Siphon Feed Spray Gun
Nozzle Size: 1.8mm (optional: 2.0mm, 2.5mm)
Feed Type: Siphon (bottom feed)
Material Cup Capacity: 1000 ml
Cup Material: Stainless steel
Body Material: Aluminum alloy
Needle and Nozzle: Stainless steel for corrosion resistance
Air Pressure: 3.0 - 4.0 bar
Air Consumption: 7.5 CFM approx.
Spray Pattern: Adjustable round to fan shape
Fluid Control: Knob adjustable
Pattern Control: Side knob adjustable
Trigger: Double-action design
Connector: 1/4” NPT
Weight: Approx. 720g (without cup)
Finish: Orange anodized
Grip Design: Ergonomic handle with texture
Transfer Efficiency: 65%-75%
Application Type: General spraying tasks
Paint Types: Primer, varnish, lacquer, stain, glue
Cleaning: Quick disassembly for cleaning
Durability: High cycle performance
Operating Temperature: 5°C – 40°C
Paint Viscosity Range: Medium to high
Noise Level: Low
Spray Width: Up to 300mm
Recommended Distance: 20 – 25 cm
Compatibility: Suitable with air compressors
Ideal For: Furniture, cabinets, fencing, machinery
Color: Metallic orange with stainless steel cup
Maintenance: Low maintenance design
Anti-Leak Design: Yes, secure cup lid
Warranty: 1 year manufacturer’s warranty
Portability: Medium weight with solid structure
Surface Finish Quality: Smooth & even coating
Country of Origin: China
Accessories: Includes wrench, cleaning tool, filter
Storage Conditions: Dry, dust-free area
Vibration: Minimal
Usage Frequency: Suitable for daily operation
CE Certified: Yes

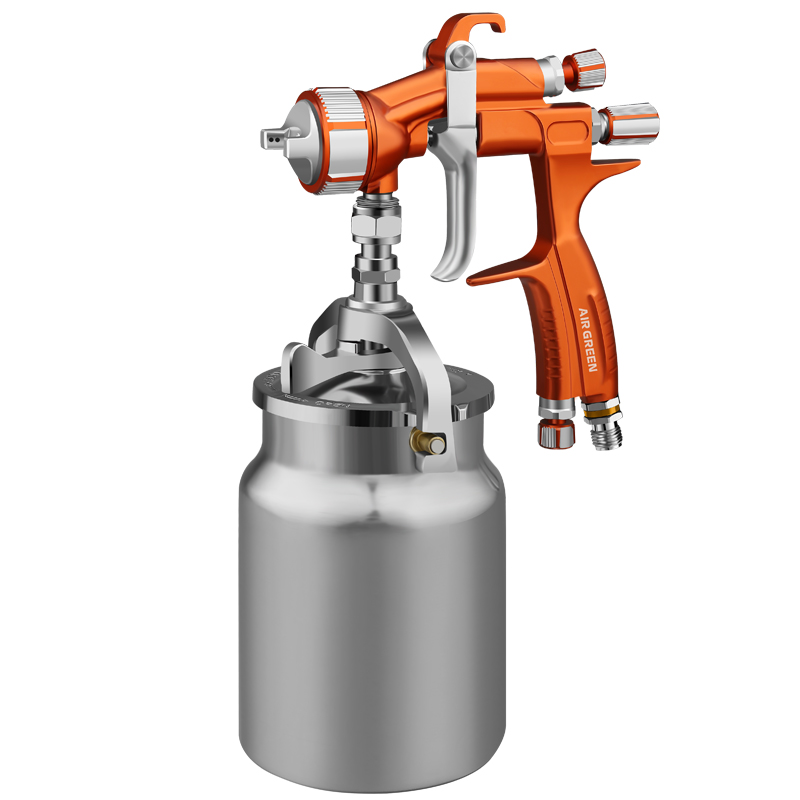

This siphon feed spray gun delivers power and precision for medium-to-large area spraying in professional workshops. It’s a reliable tool for spraying primers, lacquers, and viscous materials with excellent control.
