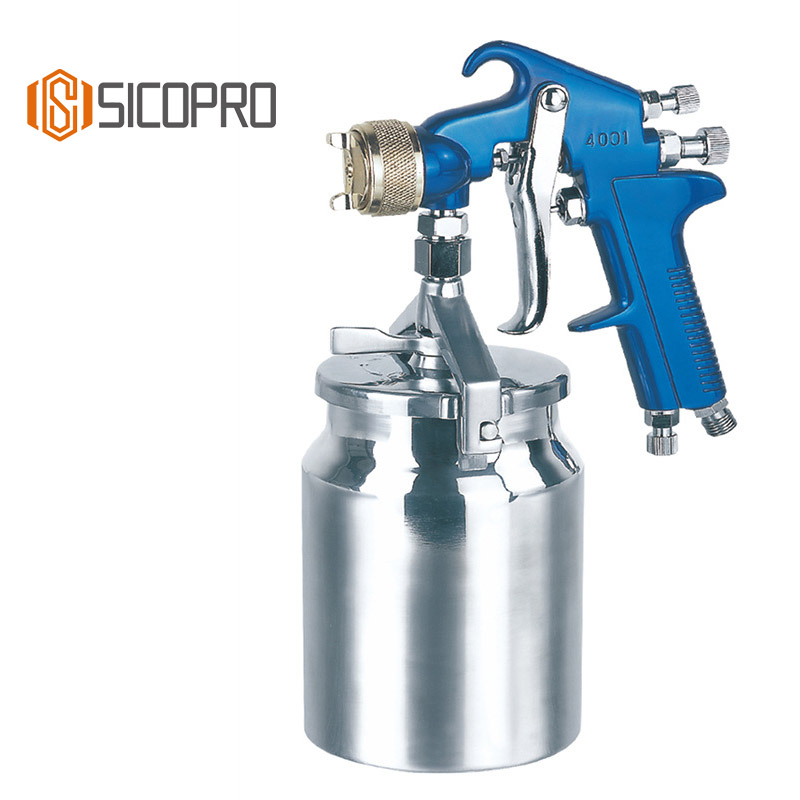

The SICOPRO 4001 spray gun combines robust construction with advanced spray technology. Ideal for medium to high viscosity materials, it delivers precise control and smooth paint flow for even coatings on large surfaces.
Model: 4001
Feed Type: Suction
Material Cup Capacity: 1000 ml
Air Pressure: 3.0 – 4.0 bar
Nozzle Size: 1.5 / 1.8 / 2.0 / 2.5 mm optional
Air Consumption: 250–320 L/min
Paint Output: 160–220 ml/min
Pattern Width: 180–250 mm
Weight: 750 g
Body Material: Aluminum Alloy
Nozzle Material: Stainless Steel
Needle Material: Stainless Steel
Air Cap Material: Brass
Surface Finish: Anodized and polished
Trigger Type: Double Action
Air Inlet: 1/4" BSP
Paint Hose Connection: Standard 3/8" BSP
Application: Automotive, furniture, machinery, and metal coating
Spray Pattern Type: Adjustable fan
Transfer Efficiency: 75–85%
Paint Compatibility: Solvent-based and water-based paints
Operating Temperature: 5–50°C
Recommended Viscosity: 15–30 seconds (Ford cup #4)
Maintenance: Easy cleaning and disassembly
Cup Type: Bottom-mounted suction cup
Seal Type: PTFE resistant seals
Durability: Corrosion and wear-resistant
Ergonomic Handle: Yes, non-slip design
Noise Level: Low
Adjustable Controls: Fluid, pattern, and air pressure knobs
Spray Technology: Conventional spray
Usage Frequency: Professional and industrial
Color: Blue and Silver
Brand: SICOPRO
Country of Origin: China
Warranty: 12 months
Certifications: CE, ISO9001
Packaging: Individual box with foam protection
Accessories: Cleaning kit, spanner, air connector
Ideal Users: Automotive painters, industrial coaters, furniture manufacturers
Performance: Stable pressure, fine atomization, high transfer rate
Environmentally Friendly: Reduced overspray and waste
Replacement Parts: Available
